Features:

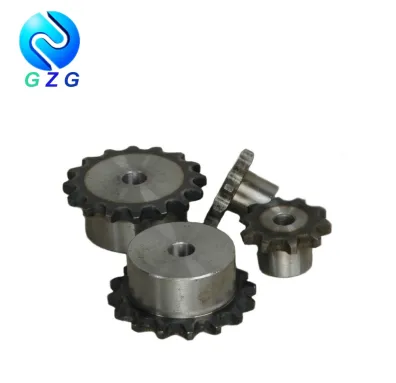

The American Standard 35 type sprocket is a widely used piece of equipment in the manufacturing industry. This sprocket is designed to work seamlessly with the American Standard 35 miniature chain. Our company offers a wide range of tooth configurations, ranging from 8 teeth to 112 teeth, making it a versatile choice for any application.
One unique feature of the 35 type sprocket is its relatively lightweight design. Unlike other similar sprockets on the market, the 35 type sprocket is specifically engineered to have a lower weight without sacrificing durability or strength. This makes it an ideal choice for any conveyor or drive system where weight is a concern.
Specification Tel：0086-854-8190520
| Teeth | OD | P.C.D | Bore:d | Type B Simplex | Type A | |||
| Hub | Weight kg |
Bore:d | Weight kg |
|||||
| BD | BL | |||||||
| 8 | 28.7 | 24.9 | 9.525 | 19.1 | 19.05 | 0.03 | 9.525 | 0.02 |
| 9 | 32.0 | 27.8 | 9.525 | 21.4 | 19.05 | 0.04 | 9.525 | 0.02 |
| 10 | 35.1 | 30.8 | 9.525 | 24.6 | 19.05 | 0.06 | 9.525 | 0.02 |
| 11 | 38.1 | 33.8 | 9.525 | 27.0 | 19.05 | 0.08 | 9.525 | 0.03 |
| 12 | 41.4 | 36.8 | 12.7 | 31.0 | 19.05 | 0.09 | 9.525 | 0.03 |
| 13 | 44.5 | 39.8 | 12.7 | 31.8 | 19.05 | 0.10 | 9.525 | 0.04 |
| 14 | 47.5 | 42.8 | 12.7 | 31.8 | 19.05 | 0.11 | 9.525 | 0.04 |
| 15 | 50.5 | 45.8 | 12.7 | 34.1 | 19.05 | 0.13 | 12.7 | 0.05 |
| 16 | 53.6 | 48.8 | 12.7 | 37.3 | 19.05 | 0.16 | 12.7 | 0.05 |
| 17 | 56.6 | 51.8 | 12.7 | 40.5 | 19.05 | 0.19 | 12.7 | 0.05 |
| 18 | 59.7 | 54.8 | 12.7 | 43.7 | 19.05 | 0.22 | 12.7 | 0.06 |
| 19 | 62.7 | 57.9 | 12.7 | 46.8 | 19.05 | 0.24 | 12.7 | 0.07 |
| 20 | 65.8 | 60.9 | 12.7 | 49.2 | 19.05 | 0.27 | 12.7 | 0.09 |
Factory Tour Tel：0086-854-8190520
Our Advantages Tel：0086-854-819020
1
Quality assurance
2
Price advantage
3
Factory wholesale
4
Good service
The 35 type sprocket is made from the highest quality materials, specifically 45 steel. This material is known for its strength, durability, and corrosion resistance, making it an excellent choice for industrial applications. When it comes to the American Standard 35 type sprocket, our company is committed to providing only the best products available. We use strict quality control measures to ensure that every sprocket we produce meets our high standards for performance and reliability.
Packing And Shipping Tel：0086-854-8190520
In summary, if you are in need of a reliable, lightweight, and versatile sprocket for your conveyor or drive system, look no further than the American Standard 35 type sprocket. Our company has the expertise and experience to provide you with the sprocket you need, with teeth configurations ranging from 8 to 112 teeth. Contact us to learn more about our products and services.
